SIMD - Intrinsics 정수의 산술 연산

덧셈

__m128i R = _mm_add_epi16(__m128i a, __m128i b)



뺄셈

__m128i R = _mm_sub_epi16(__m128i a, __m128i b)



곱셈

__m128i R = _mm_mullo_epi16(__m128i a, __m128i b)



나눗셈(지원 X)



최댓값(Max)

__m128i R = _mm_max_epi16(__m128i a, __m128i b)



최솟값(Min)

__m128i R = _mm_min_epi16(__m128i a, __m128i b)



평균

__m128i R = _mm_avg_epi16(__m128i a, __m128i b)



사용 예제

#include <iostream>
#include <afx.h>
using namespace std;
#include <emmintrin.h>

int main(int argc, char* argv[])
{
	__declspec(align(16)) short A[8] = { 2, 4, 6, 8, 10, 8, 6, 4 };
	__declspec(align(16)) short B[8] = { 1, 2, 3, 4, 5, 6, 7, 8 };
	__declspec(align(16)) short R[8] = { 1, 2, 3, 4, 5, 6, 7, 8 };

	__m128i xmmA = _mm_load_si128((__m128i*)A);
	__m128i xmmB = _mm_load_si128((__m128i*)B);

	__m128i xmmR = _mm_add_epi16(xmmA, xmmB);	//덧셈 연산

	_mm_store_si128((__m128i*)R, xmmR);			//결과 출력
	cout << "Add : " << R[7] << ", " << R[6] << ", " << R[5] << ", " << R[4] << ", " << R[3] << ", " << R[2] << ", " << R[1] << ", " << R[0] << endl;

	xmmR = _mm_sub_epi16(xmmA, xmmB);	//뺄셈 연산

	_mm_store_si128((__m128i*)R, xmmR);			//결과 출력
	cout << "Sub : " << R[7] << ", " << R[6] << ", " << R[5] << ", " << R[4] << ", " << R[3] << ", " << R[2] << ", " << R[1] << ", " << R[0] << endl;

	xmmR = _mm_mullo_epi16(xmmA, xmmB);	//곱셈 연산

	_mm_store_si128((__m128i*)R, xmmR);			//결과 출력
	cout << "Mul : " << R[7] << ", " << R[6] << ", " << R[5] << ", " << R[4] << ", " << R[3] << ", " << R[2] << ", " << R[1] << ", " << R[0] << endl;

	xmmR = _mm_max_epi16(xmmA, xmmB);	//Max값 계산

	_mm_store_si128((__m128i*)R, xmmR);			//결과 출력
	cout << "Max : " << R[7] << ", " << R[6] << ", " << R[5] << ", " << R[4] << ", " << R[3] << ", " << R[2] << ", " << R[1] << ", " << R[0] << endl;

	xmmR = _mm_min_epi16(xmmA, xmmB);	//Min값 계산

	_mm_store_si128((__m128i*)R, xmmR);			//결과 출력
	cout << "Min : " << R[7] << ", " << R[6] << ", " << R[5] << ", " << R[4] << ", " << R[3] << ", " << R[2] << ", " << R[1] << ", " << R[0] << endl;

	xmmR = _mm_avg_epu16(xmmA, xmmB);	//평균 계산

	_mm_store_si128((__m128i*)R, xmmR);			//결과 출력
	cout << "Avg : " << R[7] << ", " << R[6] << ", " << R[5] << ", " << R[4] << ", " << R[3] << ", " << R[2] << ", " << R[1] << ", " << R[0] << endl;

	return 0;
}

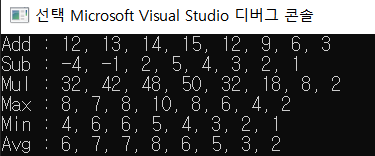

실행 결과
